Product Name:China wood cnc router/desktop 3 axis 1224 wood cutting working router

Product Details:
Model:
E5-1224D
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /
Shipping Terms:
1
Shippment Port:
Qingdao Port
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per Month
Delivery Time:
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.

Detailed Product Description:

 China wood cnc router/desktop 3 axis 1224 wood cutting working router


Product Description



The heavy duty machine with 8-slot carousel tool magazine, suitable for gravity cutting, with wide function such as routing, drilling, cutting, side milling, edge chamfering, etc. Boring aggregate can be optional. Vacuum table with great absorption strength - adsorb different areas of materials, also can use fixtures to hold various shaped materials with fixture, which is flexible and convenient. At the same time, the drilling bank is optional according to the customer's needs.

Technical Parameter





Series

E5-1224D

E5-1530D

E5-2030D

E5-2040D

Travelling size

2500*1260*330mm

3100*1570*330mm

3350*2100*330mm

4350*2100*330mm

Working size

2480*1230*200mm

3080*1560*200mm

3050*2032*200mm

3940*2032*200mm

Table size

2500*1240mm

3100*1570mm

3100*2100mm

4020*2100mm

Transmission

X/ Y rack and pinion drive, Z ball screw drive

Table structure

  T-slot and vacuum table

Spindle power

  9.6/12kw

Spindle speed

  24000r/min

Travelling speed

80m/min

Working speed

 20m/min

Tool magazine

Carousel 8/12/16 slots

Driving system

Yaskawa

Voltage

AC380/ 3PH/ 50HZ

Controller

OSAI/Syntec





Detailed Images



1. Carousel tool magazine

 machine part 1.jpg

The machine adopts carousel tool magazine, standard equipped with 8 tools, and   the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.



 2. OSAI Controlling System

machine part 3.jpg

The machine adopts OSAI control system designed for woodworking equipment , with the feature of highly efficiency and stable.

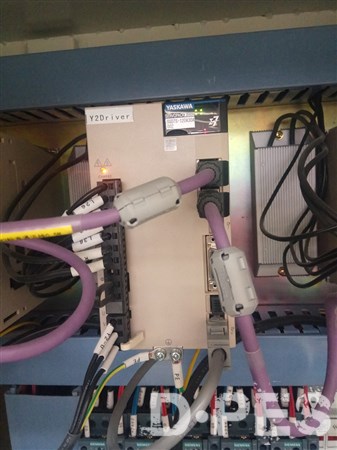

3. Japan Yaskawa servo motor and driver

machine part 5.jpg

machine part 6.jpg



The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

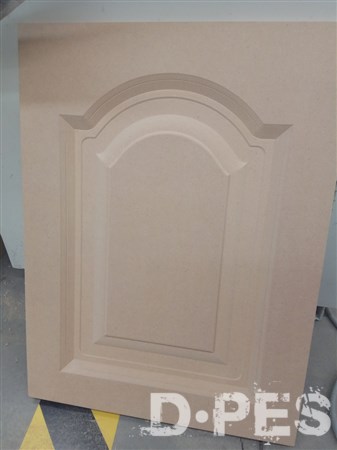

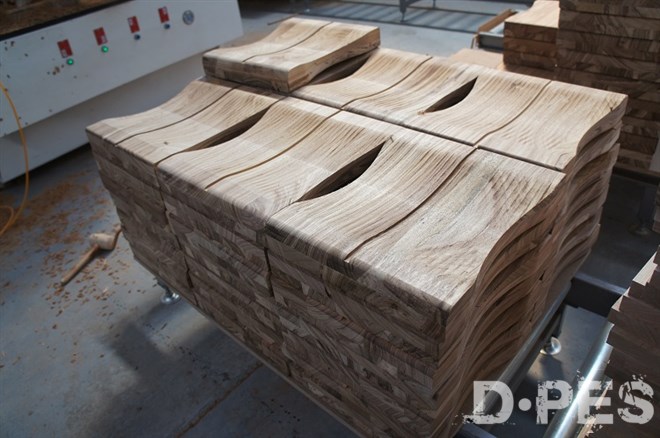

Sample

Application:

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.





 sample 1.jpg

sample 2.jpg

sample 3.jpg

sample 4.jpg

Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.




Exhibition




CE Certificate

CE Certification.jpg



Quality Inspection




Machining workshop

machining workshop.jpg

 We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
