Product Name:Wood CNC ATC cutting milling router with vertical drilling unit

Product Details:
E3-1325D with drilling
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
Shippment Port:
Qingdao Port
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per 0
Delivery Time:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.

Detailed Product Description:

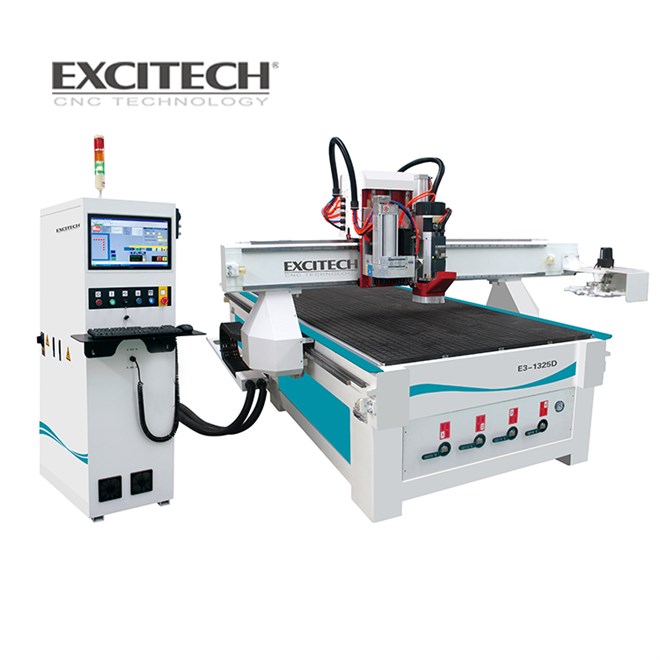

Wood CNC ATC cutting milling router with vertical drilling unit

E3-1325D with drilling.jpg

Product Description


The machine with carousel tool magazine, suitable for composite wood products processing, wide function such as boring, drilling, cutting, side milling, and edge cutting,etc.  It is a standard processing center with high cost performance. The table top adopt T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient. At the same time, the machine is also equipped with vertical drilling bank, which can meet more need of the customers.

Technical Parameter








Travelling size





Working size





Table size






X/ Y rack and pinion drive, Z ball screw drive

Table structure

  T-slot and vacuum table

Spindle power


Spindle speed


Travelling speed


Working speed


Tool magazine

Carousel 8/12/16 slots

Driving system



AC380/ 3PH/ 50HZ




5+4 vertical drilling bank

Detailed Images

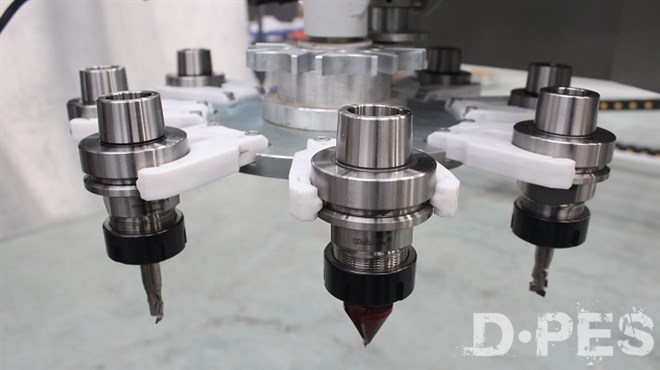

1. Carousel tool magazine

machine part 1.jpg


The machine adopts carousel tool magazine, standard equipped with 8 tools, and   the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

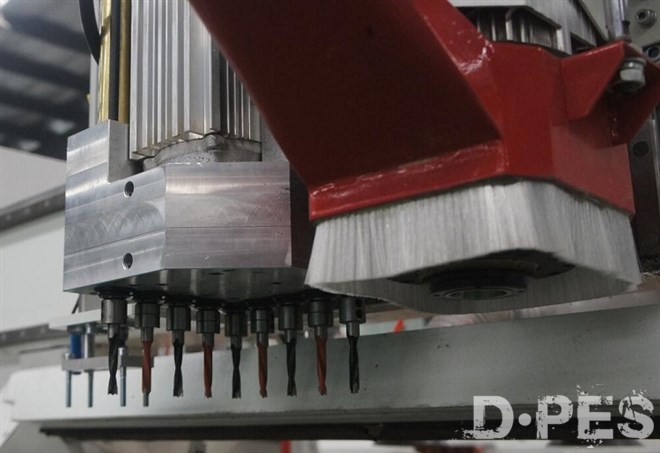

 2. HSD spindle with boring unit

machine part 1.jpg

The machine adopts HSD automatic tool change spindle and Italy imported drills, including 9 vertical drills, 6 horizontal drills and 1 saw blade drill, which can meet more processing requirements of users.



3. Japan Yaskawa servo motor and driver

machine part 5.jpg

machine part 4.jpg


The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

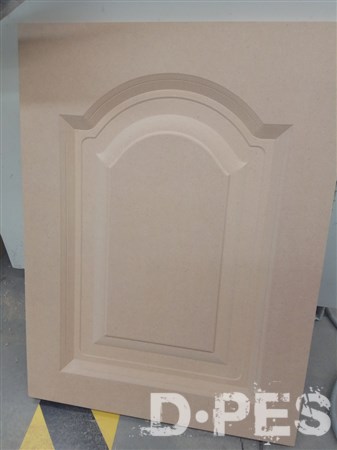

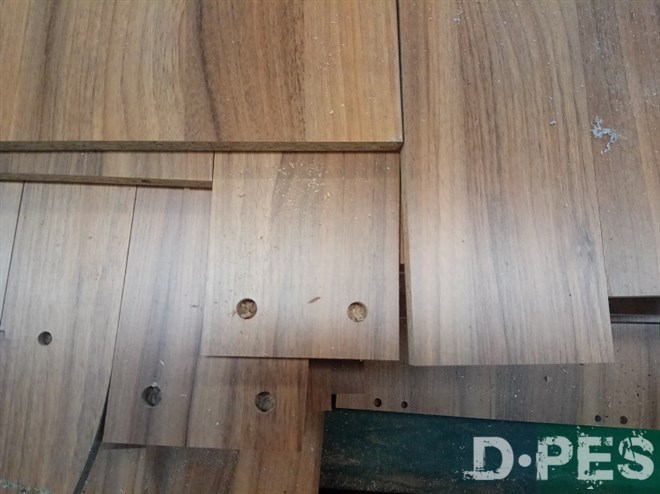

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.  It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.



sample 1.jpg

sample 2.jpg

sample 3.jpg

sample 4.jpg

Company Information



Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.





CE Certificate

CE Certification.jpg


Quality Inspection



Machining workshop

machining workshop.jpg

 We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping


The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.



Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technology support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
