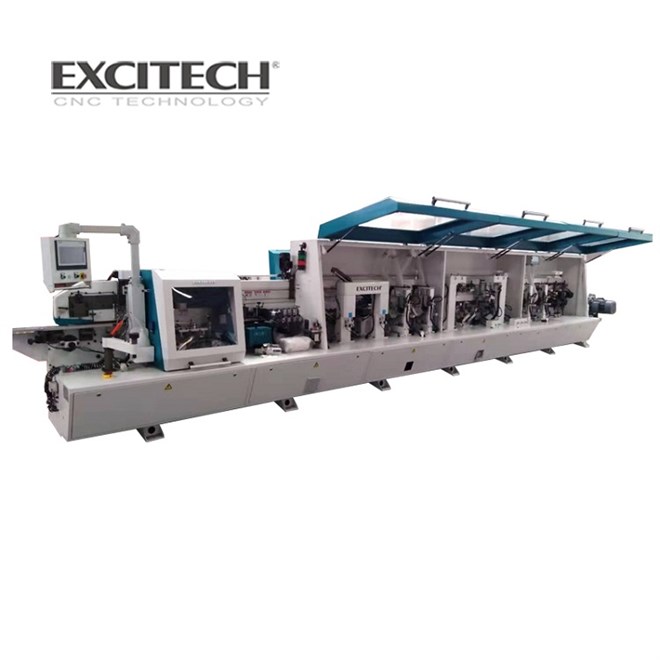

Product Description
Edge banding work is an important process in the manufacture of panel furniture. The quality of the edge banding directly affects the quality, price and grade of the product. By edge banding, it can improve the appearance quality of the furniture, avoid the corners damage and the veneer layer pick up or peel off, and at the same time, it can play the role of waterproofing, close the release of harmful gases and reduce deformation during the transportation and useing process. The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips. The structure of the edge banding machine mainly includes the fuselage, various processing components and control systems. The processing components mainly include: pre-milling, infrared heating, gluing with quick-melt, rough trimming, fine trimming, corner trimming, scraping, off-cut, spray cleaning agent, buffing with air cyliner controlled. Mainly used for edge sealing of panel furniture. It is characterized by automation, high efficiency, high precision and aesthetics. It has been widely used in panel furniture manufacturers.
Detailed Images

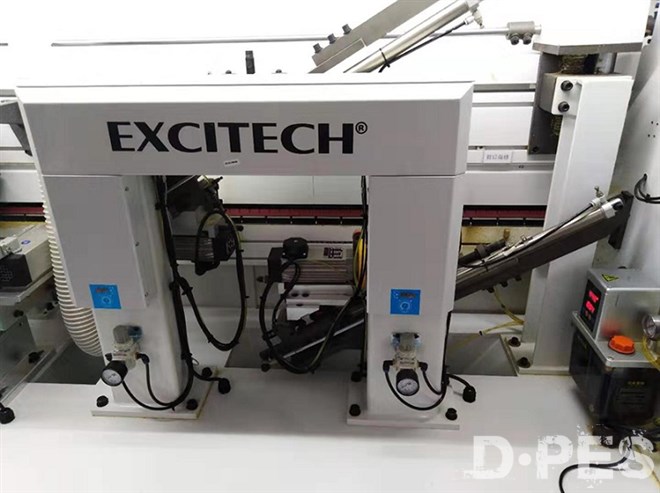

1.Spray realease agent
This device spray-applies a thin coat of release agent to the upper and lower edge area of the workpiece and prevents squeezed out glue from adhering to the workpiece.

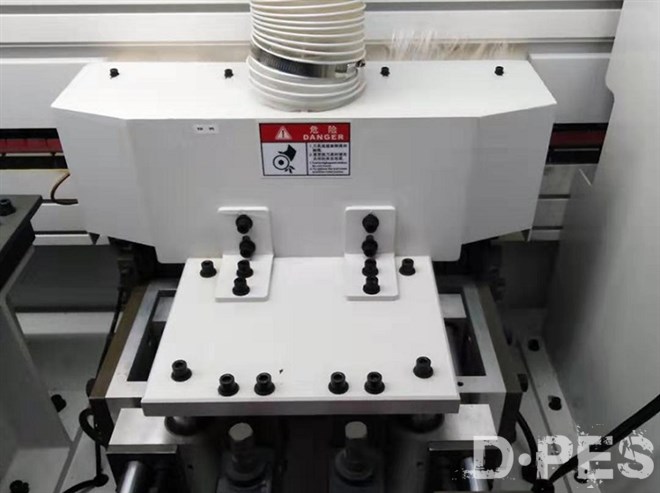

2. Pre-milling unit
It is equipped with diamond tools for better cut and longer use. This device removes the burr or uneveness on the edge of the workpiece, leaving a smooth surface for the edgebanding. It can profile units available upon request.

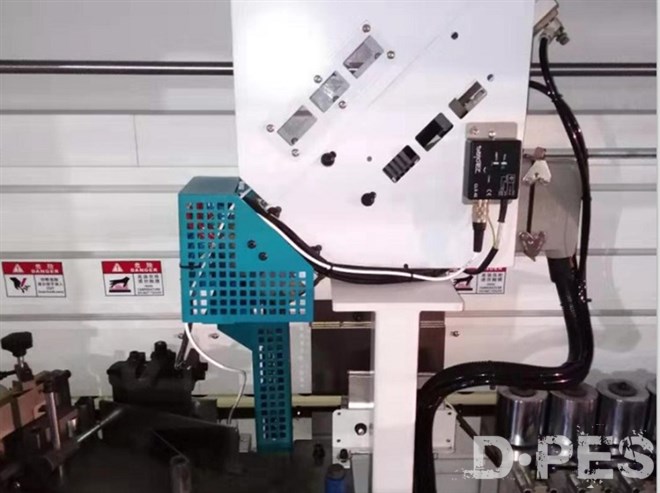

3. Gluing with quick-melt
The gluing unit features quick melt , reducing the thawing time of glue and guaranteeing perfect glue quality on different edge materials.

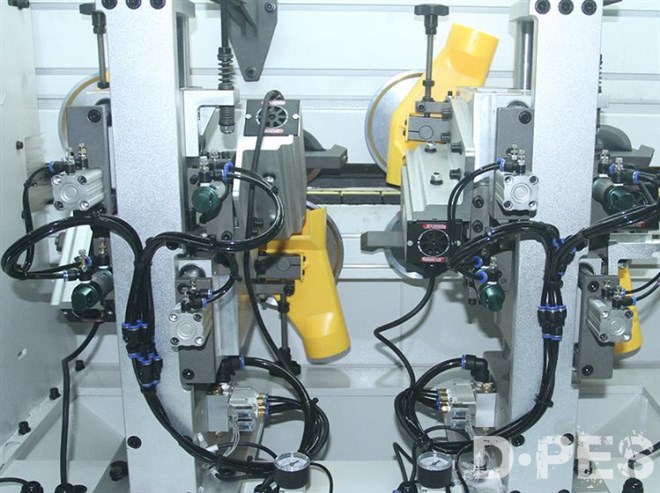

4. Corner Trimming
It is equipped with 4 motors and works well with various edge thickness and invariably result in perfect round corner.
5. R scraping
No power scraping mechanism, for PVC/ABS edge banding within 3mm, R scraping edge is to remove the edge of the finishing unit in the processing edge band, so that the edge of the edge band More full and straight.
6. Flat scraping
Pneumatic control, the role is to scrape off the remaining glue left on the wood, reducing the glue line.

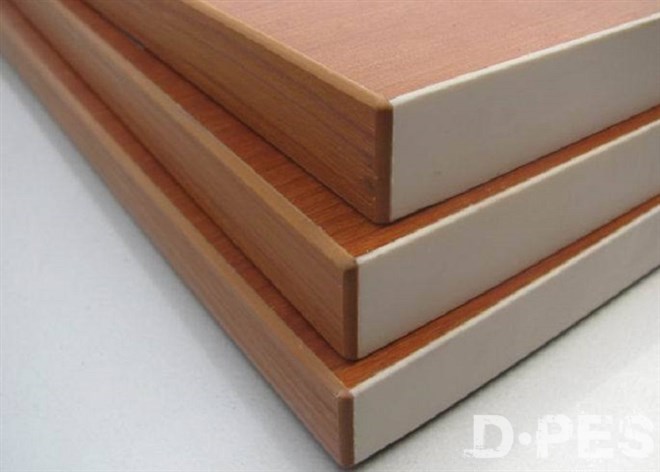

Sample
Application:
The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips.
Company Information
Company introduction
- EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
- Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
- We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
Sincerely welcome to our company for field visits.
Exhibition
Quality Inspection
Machining workshop
We have our own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.
Packaging & Shipping
The cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Fasten the cnc machine into the wood case for safety and against clashing.
Transport the wood case into the container.
