Product Name:Two spindles cnc router engraver drilling machine for furniture making

Product Details:
Model:
E2-9 Double Working Zones
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
1
Shippment Port:
Qingdao Port
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
200 Set/Sets per Month
Delivery Time:
Packaging:
The cnc center is to be packed with plastic sheet for cleaning and damp proofing. Fasten the cnc machine into the wood case for safety and against clashing. Transport the wood case into the container.

Detailed Product Description:

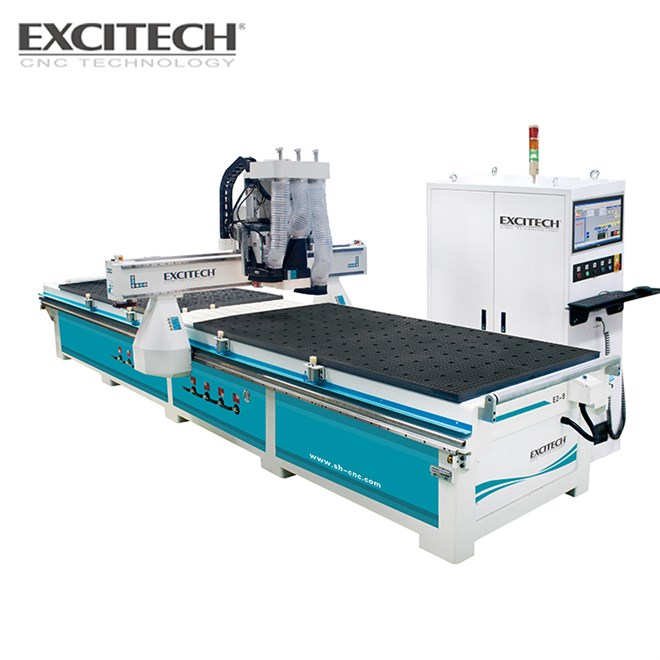

Two spindles cnc router engraver drilling machine for furniture making


Product Description



The structure of the machine is exquisite, achieving a win-win of speed and precision. Standard double spindle in the machine, can be used for cutting and engraving, and it can also clamp different tools for different function. With the push device, the wood panel can be unloadingn from the processing table automatically, convenient for the operator to take the panel. At the same time, double working station processing without interruption, can save time for completion and greatly improve production efficiencysaving processing time and improving processing efficiency greatly. Meanwhile, the machine also can be equipped with auto feeding platform.The machine is equipped with vertical boring unit for vertical punching in the panel. It can be docked with EXCITECH cabinet software, optimized materials, can be flexible and cost-effective.

Technical Parameter



Series

E2-9 Double Working Zones

Traveling Size

2500*1260×200mm

Working Size

2440*1220*50mm

Unloading Speed

15m/min

Transmission

X Y axis rack and pinion drive, Z axis TBI screw drive

Rail guide

 Japan THK linear rail guide

Spindle

HSD 6.0KW/ EXCITECH 5.5KW

Spindle Speed

0-18000rpm/min

Spindle cooling

Air cooling

Inverter

Delta inverter

Drive motor

Japan Yaskawa servo motor and driver

Traveling Speed

40m/min

Working speed

18m/min

Voltage

AC380/3P/50HZ

Controller

Syntec control system

Command

G Code

Detailed Images

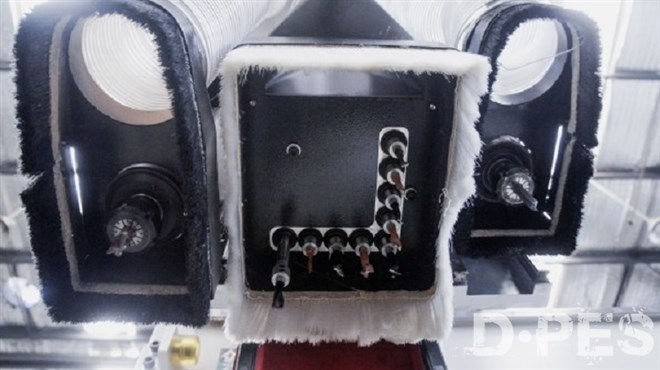

1. Double spindle with boring unit

machine part 1.jpg

Standard double spindle in the machine, can be used for cutting and engraving, and it can also clamp different tools for different function.

 The machine is equipped with vertical boring unit for vertical punching in the panel.



 2. Push device

machine part 2.jpg

 With the push device, the wood panel can be unloadingn from the processing table automatically, convenient for the operator to take the panel, saving processing time and improving processing efficiency greatly.



 3. Feeding roller

machine part 7.jpg



 Add roller to the front and back of the bed for easy loading.



4. Double working station



machine part 8.jpg

Double working station processing without interruption, can save time for completion and greatly improve production efficiency.

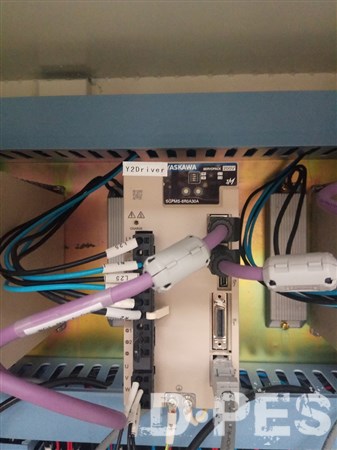

5. Japan Yaskawa servo motor and driver

machine part 5.jpg

machine part 6.jpg



The machine adopt Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

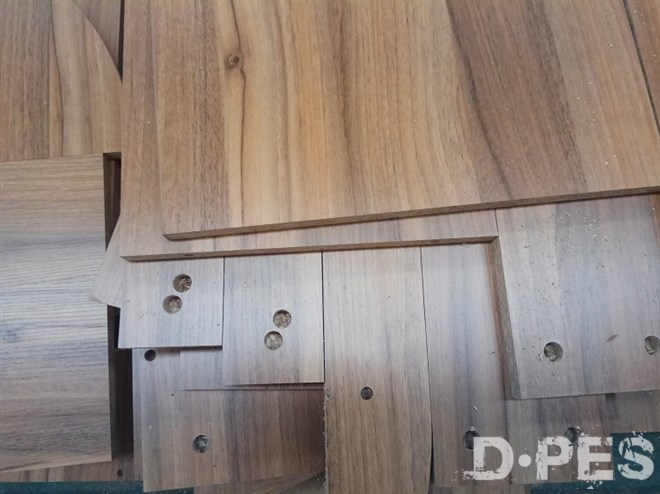

Sample

Application:

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.  It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.

 sample 1.jpg

sample 2.jpg

sample 3.jpg



Company Information





Company introduction

  • EXCITECH is a company specializing in the development and manufacture of automated woodworking equipment. We are in the leading position in the field of non-metallic CNC in China. We focus on building intelligent unmanned factories in the furniture industry. Our products cover plate furniture production line equipment, full range of five-axis three-dimensional machining centers, CNC panel saws, boring and milling machining centers, machining centers and engraving machines of different specifications. Our machine are widely used in panel furniture, custom cabinet wardrobes, five-axis three-dimensional processing, solid wood furniture and other non-metal processing fields.
  • Our quality standard positioning is synchronized with Europe and the United States. The whole line adopts standard international brand parts, cooperates with advanced processing and assembly processes, and has strict process quality inspection. We are committed to providing users with stable and reliable equipment for long-term industrial use. Our machine are exported to more than 90 countries and regions, such as United States, Russia, Germany, the United Kingdom, Finland, Australia, Canada, Belgium,etc.
  • We are also one of the few manufacturers in China that can carry out the planning of professional intelligent factories and provide related equipment and software. We can
    provide a series of solutions for the production of panel cabinet wardrobes and integrate customization into large-scale production.
    Sincerely welcome to our company for field visits.




CE Certificate

CE Certification.jpg

Exhibition




Machining workshop

machining workshop.jpg

 We has its own machining workshop, a total of 5 gantry five-sided milling, each special machine for special use.
Side arms, beams, Z-axis skateboards, machine beds are specially processed by different equipment to guarantee high precision of the machine.

Packaging & Shipping



The cnc center is to be packed with plastic sheet for cleaning and damp proofing.

Fasten the cnc machine into the wood case for safety and against clashing.

Transport the wood case into the container.




Our Services
  • We provide 12 months warranty for the machine.
  • Consumable parts will be replaced free during the warranty.
  • Our engineer could provide technoloty support and training for you in your country, if necessary.
  • Our engineer could service for you 24 hours online, by Whatsapp,Wechat,QQ, or by cellphone etc.
